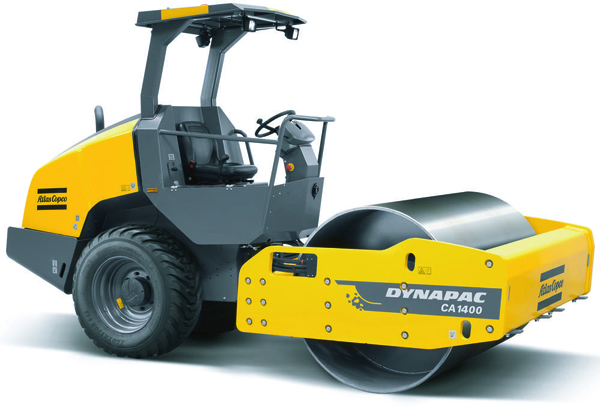

Atlas Copco Releases CA1400 Soil Vibratory Road Roller

“Rental centers look for equipment that is versatile and easy to maintain, and contractors want productivity. We designed the CA1400 with those features in mind,” said Tim Hoffman, Atlas Copco rollers product manager. “Like all of our road construction equipment, the CA1400 vibratory road roller has an ergonomic operators' station to maximize comfort, which contributes to overall productivity. And its tested and proven gradeability, along with dual amplitude and speed, provide versatility for many compaction projects.”
The CA1400's 66-in.-wide (167 cm) drum and two amplitudes — .032 and .067 in. (.08 and 017 cm) — allow rental centers to offer contractors one unit for compacting a wide range of materials. Using the adjustable settings, operators can change the amplitude to suit different lift thicknesses.
In addition to two amplitudes, operators can set the speed on the CA1400 vibratory road roller to high or low to achieve different compaction results on a variety of applications and materials. Due to compact size, the CA1400 vibratory road roller works well for compacting materials on large building foundations and industrial construction sites. The CA1400 vibratory road roller offers operators optimum gradeability to easily maneuver up and down steep slopes. To ensure consistent speed, the CA1400 vibratory road roller features flotation tires and a differential lock and a drum drive system for high traction in forward or reverse. These components also allow for easy movement on the job site and increased productivity.
Atlas Copco offers the CA1400 vibratory road roller with a smooth-drum or pad-drum. The roller's high, static linear load of 112 lbs. per linear in. make it ideal for compacting thin layers of materials, such as silt, clay and gravel. Compaction power from its eccentric weights transfers through the roller's drum to efficiently compact sand and gravel as deep as 20 in. (51 cm) with minimal passes. The PD version will compact silt and clay at a depth of 18 in. (45.7 cm).
A cross-mounted 75-hp Kubota diesel engine sits perpendicular to the CA1400's frame. This allows technicians to reach all necessary engine components and hydraulic systems for easy servicing, which reduces turnaround time for rental centers and minimizes downtime for contractors. A 12-volt outlet within the engine compartment can power lights allowing operators a clear view of the engine at night or during low-light conditions.
Because the engine is cross-mounted rather than parallel to the frame, the roller has optimal weight distribution. The engine position also contributes to the roller's small footprint, which helps the unit easily fit on a trailer with other construction equipment. The compact machine maneuvers easily into tight workspaces, through pipe trenches and on road shoulders.
Atlas Copco designs its equipment to minimize engine wear and noise. The CA1400 vibratory road roller has top-mounted, cool-air intakes with side vents that combine with the ejector exhaust outlet to minimize engine noise. This also prevents dust from entering the engine compartment, which can occur when compacting dry loose soil.
With Atlas Copco's ECO Mode rpm-management system, the engine minimizes fuel consumption and CO2 emissions. The system generates only the amount of power needed to operate at any given time, which reduces fuel consumption as much as 15 percent. Operators also can switch the engine to run at high rpm for heavy climbing or starting the vibratory function of the roller.
An operator station gives workers a clear view of the drum's edge and surroundings, which is crucial while maneuvering in tight workspaces. Increased visibility enhances productivity, as well as ergonomics, by eliminating the need for operators to twist and lean in order to see the work area. Additionally, Atlas Copco insulated the station against vibrations to minimize harsh body and hand/arm vibrations.
The An operator station gives workers a clear view of the drum's edge and surroundings, which is crucial while maneuvering in tight workspaces. Increased visibility enhances productivity, as well as ergonomics, by eliminating the need for operators to twist and lean in order to see the work area. Additionally, Atlas Copco insulated the station against vibrations to minimize harsh body and hand/arm vibrations.
The roller vibratory road roller includes safety features such as a back-up alarm and battery disconnect switch on the operators platform. As with all Dynapac machines, the parking brake is separated from the forward and reverse lever to minimize the risk of unintentionally releasing the brake.
Atlas Copco offers rental centers multiple versatility-enhancing options, such as biodegradable hydraulic fluid, a bolt on shell kit, and a leveling blade.
