Vogele's New Pavers Feature ErgoPlus3

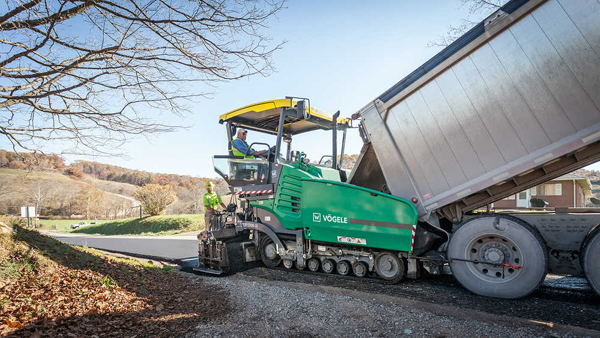

Pavers in the 8-ft. class are road construction machines that are designed to achieve maximum performance both in confined conditions and on highway job sites. What may sound like conflicting objectives has led Vogele's design engineers to a future-oriented solution. The result is the new Super 1700-3i tracked paver and Super 1703-3i wheeled paver, ultra-modern machines that are compact but powerful, and thus meet the highest demands, according to the manufacturer.
The Super 1700-3i and Super 1703-3i integrate many advantages that pay off under demanding operating conditions. For example, the material handling concept that effectively counteracts thermal and mechanical segregation by such means as its cleverly designed receiving hopper, ascending conveyors and hydraulic augers, the height of which can be adjusted by 6 in. (15 cm).
Maximum Ease of Operation With the Intuitive ErgoPlus 3 Operating Concept
For Vogele, however, design means much more than just meeting the demands of construction companies and customers. Every Vogele development focuses above all on the user, as evidenced by the ErgoPlus 3 operating concept. It encompasses an ergonomic paver operator's platform with numerous intelligent details, such as a hardtop with an extendable sunshade and comfortable seats that swing out to the side. The heart of the ErgoPlus 3 system is the operating consoles for the driver and screed operator. All functions are arranged here in logical groups, push-buttons support reliable operation even when wearing work gloves, and the backlit color displays make it easy to clearly read current settings, even at night or in bright sunlight.
Strong Performance: Ready to Give Their All
A paver that has to master a variety of construction projects must be designed for the maximum required level of performance. For the new 8-ft. pavers, combined with the Vogele front-mounted extending screed and hydraulic bolt-on extensions, this maximum is at 19 ft. 6 in. (5.95 m). Strong performance, even when operating at this maximum paving width, is provided by a liquid-cooled 4-cylinder Cummins diesel engine, which even functions reliably under extreme climate conditions. The engine has an output of 173 hp (129 kW) at 2,000 rpm. When working in ECO mode, which is sufficient for most applications, the engine runs at a maximum of 1,700 rpm, further reducing noise emissions and fuel consumption.
Laydown Rates of up to 770 Tph
The entire material handling system of the Super 1700-3i and Super 1703-3i also is designed for high output, starting with the extra-large receiving hopper with a capacity of 14.3 tons (13 t), which supports the easy and rapid supply of mix from the trucks. Even a truck hitch is available. High-powered, separate hydraulic drives on the conveyor and auger deliver an optimum head of mix in front of the screed in every paving situation: They support high laydown rates of up to 770 tph (700 t/h). To transfer this performance onto the road, both pavers have outstanding traction. For the Super 1703-3i wheeled paver, customers have a choice between a 6x4 and 6x6 drive.
Stability Combined With Variability
Vogele views the paver and screed as a single system, and closely coordinates the two during development. This is evident in the combination of the Super 1700-3i and Super 1703-3i with the front-mounted VF 500 extending screed. It features extremely high stability for maximum evenness and great variability. With the ErgoPlus 3 screed console, the screed can be adjusted infinitely variably and rapidly in a range from 8 to 15 ft. 6 in. (2.45 to 4.75 m), or with bolt-on extensions to 19 ft. 6 in. (5.95 m).
