Asphalt Grouting Machine

An asphalt grouting machine works by using a burner to heat the asphalt or grouting compound in the hopper and then hitting the asphalt or grouting compound on the cracks in the pavement through the d

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Asphalt Grouting Machine

An asphalt grouting machine works by using a burner to heat the asphalt or grouting compound in the hopper and then hitting the asphalt or grouting compound on the cracks in the pavement through the discharge tube.

Features:
1.Adopting advanced asphalt grouting technology, it is able to carry out pavement repair and maintenance quickly and efficiently.
2.The machine has a compact structural design and is easy to operate.
3.Made of high quality materials with strong wear and corrosion resistance.
4.Adopting advanced environmental protection technology, which reduces the emission of exhaust gas and noise during asphalt grouting.
5.Equipped with intelligent control system, it can automatically adjust the asphalt temperature and flow rate to improve the construction quality and efficiency.

Parameter of Asphalt Grouting Machine

Specification ZM103L-A  Electric ZMHY-200C   Diesel
Grouting capacity 103L 200L
Heating time 30-40min 30-45min
Temperature range 60-260 60-380
Burners Imported Italian Rialto Imported Italian Rialto
Grouting speed 0-25m/min 0-25m/min
Output capacity 8-15L/min 8-25L/min
Material volume 130L 200L
Travelling pattern hand-push Traction/Hand push
Thermal grease 30L 90L
Engine power 4KW Imported Corolla diesel engine sets 4kw
voltage 220V 220V
Thermostat control Digital temperature controlAutomatic thermostatic control
Electric heating tube 5 meters 5.2 meters
Sizes 1950*1200*1300mm 2250*1300*1600mm

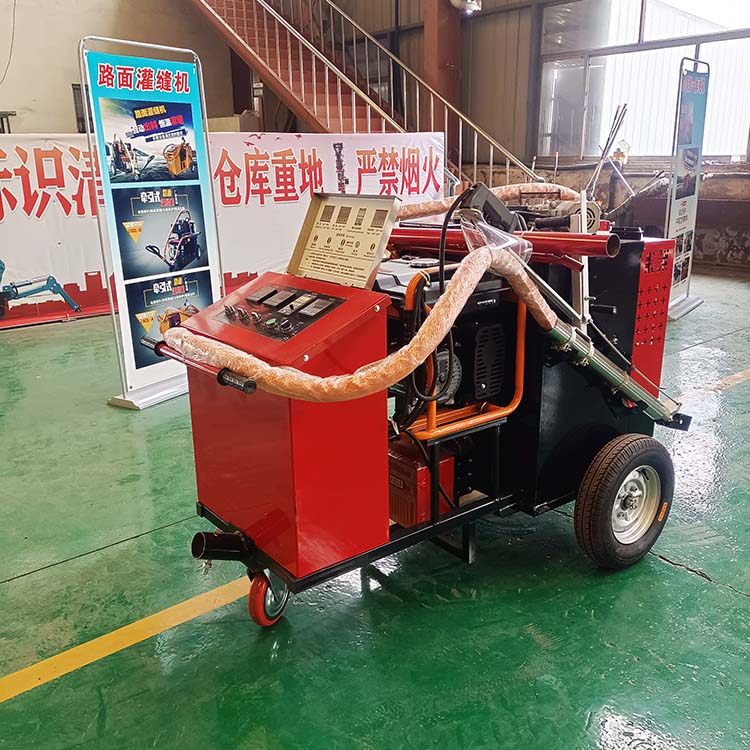

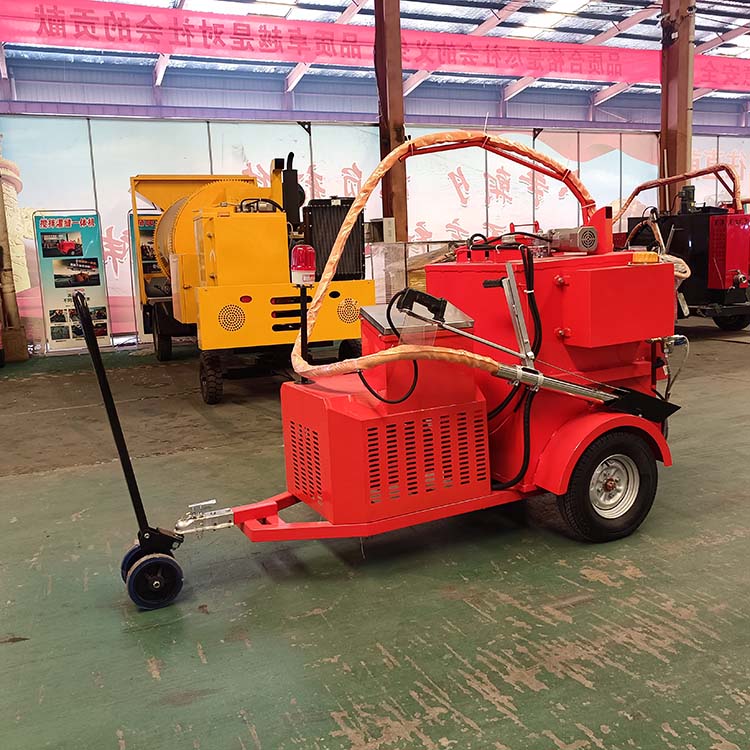

Pictures of Asphalt Grouting Machine
