HBT Series Diesel Concrete Pump
HBT series Diesel Engine Mini Concrete Pump of small concrete pumps are widely used in engineering projects, such as residential building, bridge, tunnel, etc. and this concrete pump trucks are especi
Product Recommendation
- Product Introduction
- Product Parameter
- Product Picture
- Product Comment
Introduction of HBT Series Diesel Concrete Pump
HBT series Diesel Engine Mini Concrete Pump of small concrete pumps are widely used in engineering projects, such as residential building, bridge, tunnel, etc. and this concrete pump trucks are especially suitable for areas with power shortage. Daswell is dedicated to being the most professional concrete pump supplier. You can find many small concrete pumps for sale here. We are looking forward to your further enquiries.
1. HBT Diesel Engine Mini Concrete Pump adopt original VOLVO and LOVOL diesel engines as the power of pumps;
2. Suitable for areas with power shortage;
3. The full hydraulic system can extend component life, improve equipment reliability, and reduce the failure rate and maintenance costs;
4. The S tube valves are cast into shape with high manganese steel and has the dual advantages of anti-high pressure and anti-wearing.
5. The seal components in big cylinder adopt the products of American Parker.
Parameter of HBT Series Diesel Concrete Pump
| Model | CPZM10D | CPZM15D | CPZM20D | CPZM30D | CPZM40D | CPZM50D | CPZM60D | CPZM80D |
| Working capacity: | 5-10m³/H | 8-15m³/H | 15-20m³/h | 25-30m³/h | 40m³/h | 45- 50m³/h | 60m³/h | 75-80m³/h |
| Outlet pressure: | 8Mpa | 10-15Mpa | 10MPa | 10MPa | 10MPa | 10MPa | 13MPa | 18MPa |
| Distribution valve type | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve |
| Conveying cylinder size: | Φ 140*500mm | Φ 120*540mm | Φ140*650mm | Φ160*750mm | Φ160*1200mm | Φ180*1000mm | Φ200*1600mm | Φ230*1800mm |
| Diameter of discharge port | Φ80mm | Φ80mm | Φ100mm | Φ125mm | Φ150mm | Φ150mm | Φ200mm | Φ200mm |
| Power | 17.8KW/28HP | 22KW/28HP diesel | (30KW MOTOR) | 40.1KW(4102weichai ) | 76KW/(4108 weichai) | 90KW (4108 weichai) | 110KW/380V (weichai) | 110KW(6108 weichai |
| Working vertical Height: | Max 80m | Max 80m | 120m(<20mm); 50m(20-30mm) | 120m | 150m | 150m | 150m | 250m |
| Working horizontal distance: | Max 80m | Max 80m | 250m(<20mm); 80m(20-30mm) | 250m | 350m | 350m | 350m | 800m |
| Max Granules diameter: | 20-25mm | 20-25mm | 30mm | 30mm | 40mm | 40mm | 50mm | 60mm |
| Machine Size:L*W*H mm | 2480-1140-1400 | 2500*1250*1350 | 3400*1100*1700 | 3600*1650*1800 | 4300*1750*1850 | 4500*1750*1850 | 6000*2160*2300 | 6200*1800*2000 |
| Machine Weight | Weight: | 850KG | 1100KG | 1500KG | 3300KG | 3500KG | 6200KG | 5800KG |

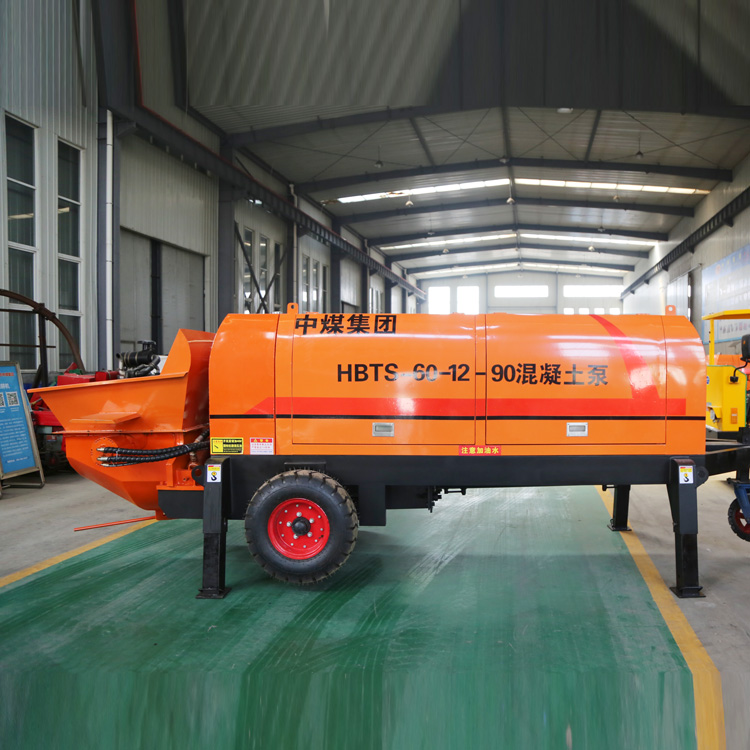

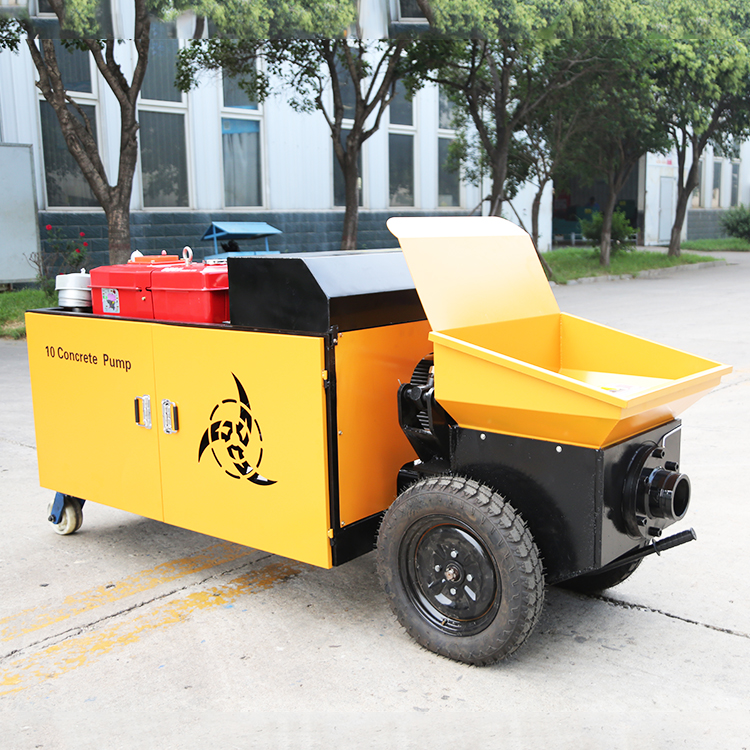

Pictures of HBT Series Diesel Concrete Pump
