Backhoe Loader

A backhoe loader is a versatile two-in-one construction machine that combines a digging arm in the back with a loading bucket in the front, offering an economical and compact solution for a wide range

Product Recommendation

  • Product Introduction
  • Product Parameter
  • Product Picture
  • Product Comment

Introduction of Backhoe Loader

1. What It Is
A versatile construction machine combining two key functions in one unit: a loader bucket at the front for moving materials, and a digging backhoe at the rear for excavation.

2. Core Features

  • 2-in-1 Machine: Functions as both a small wheel loader and a mini excavator, maximizing job-site versatility.

  • Compact & Maneuverable: Ideal for working in confined spaces like urban streets, farms, and utility sites.

  • Cost-Effective: Lower upfront and operational costs than owning two separate machines.

  • Simple & Rugged: Reliable design built for diverse job site conditions.

3. Common Uses
Perfect for tasks requiring both digging and loading, such as:

  • Trenching for utilities and irrigation

  • Material handling (soil, gravel, debris)

  • General construction and site work

  • Municipal maintenance and repair

4. Key Advantage
It provides exceptional versatility at a single-machine price point, making it the ideal primary equipment for small to mid-sized projects and contractors.

Parameter of Backhoe Loader

Model ZM3CX ZM4CX ZM388 ZM30-25 ZM945-65 ZM945-55 ZM942-45 ZM932-30
Bucket capacity (m cubed): 1.2 1.2 1 1 1.2 1.2 1 0.8
Digger Bucket capacity (m cubed): 0.3 0.3 0.3 0.3 0.25 0.25 0.2 0.2
Max.speed (km/h) 38 38 22-35 22 35 35 38 30
Engine model: Yuchai4105 Yuchai4108 Yuchai4105 Yuchai4105 Yuchai4105 Yuchai4105 Yunnei4102 Yunnei4100
Power (KW): 85kw 75kw 85kw 85kw 85kw 85kw 76kw 65kw
Overall dimensions H * W * H (mm): 6000*2500*3800 6000*2500*3800 6150*2350*3763 5800*2268*3760 7000*2200*2900 7000*2200*2900 6900*2000*2800 6500*1850*2700
wheelbase (mm) 2250 2250 2200 2370 2720 2720 2550 2240
Wheel (rail) distance  (mm) 1950 2050 1850/2000 1460 1700 1700 1570 1480
Min.Ground clearance  (mm) 450 400 300 300 320 320 270 250
 Weight (kg) 9200 9500 8400 7650 8000 7300 6500 5000
Max. digging depth (mm); 4000-5300 4000-5300 4000-5200 4000-5200 3000 3000 3000 2000
Max. excavation height (mm): —— —— 6060/7200 5880/7000 5600 5600 5600 4300
Max. excavation radius 4800/6000 5400/6500 5800/7100 5300/6600 4800 4800 4800 3700
 Dump height of bucket (mm) 5200/5950 5480/6100 2742 4200/5000 3600 3600 3500 3200
Digger discharge height (mm) 3000 3800/4450 4500/5300 1060 4100 4100 4100 3100
Steering angle —— —— 38º 36º 38º 38º 38º 33º

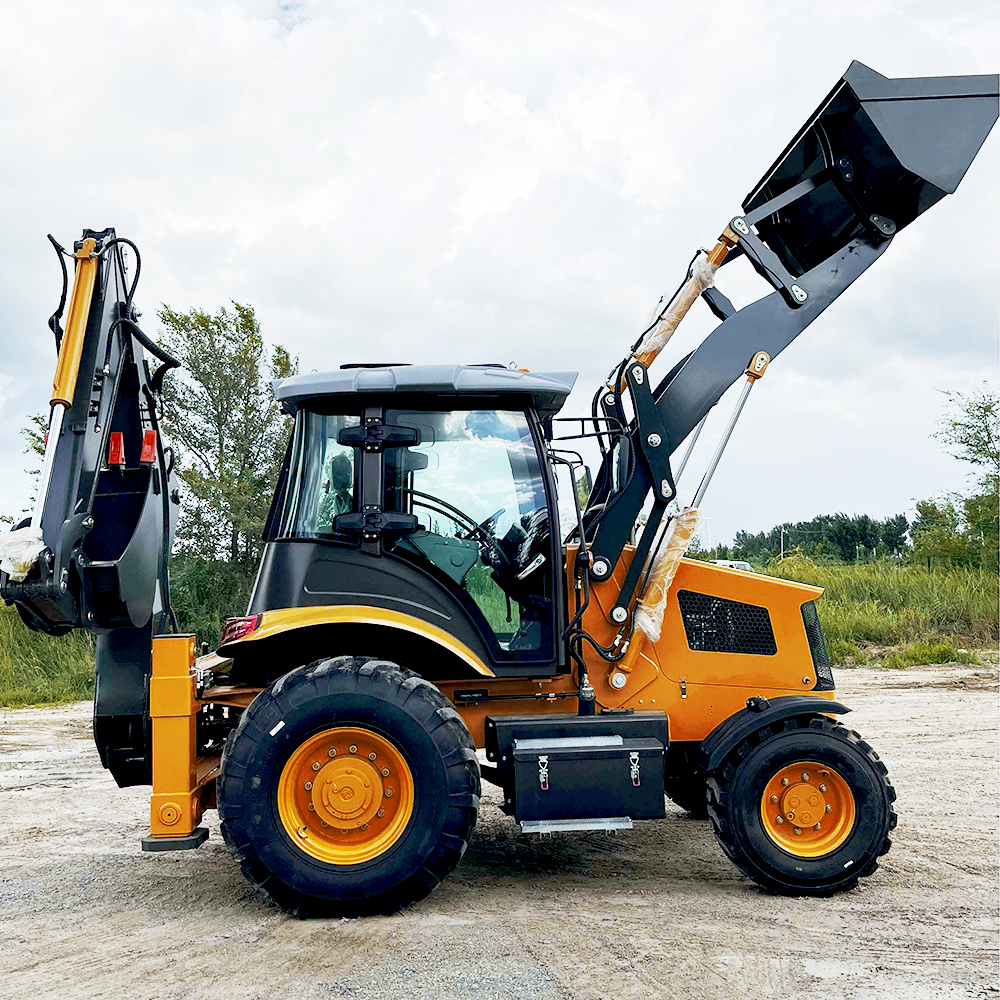

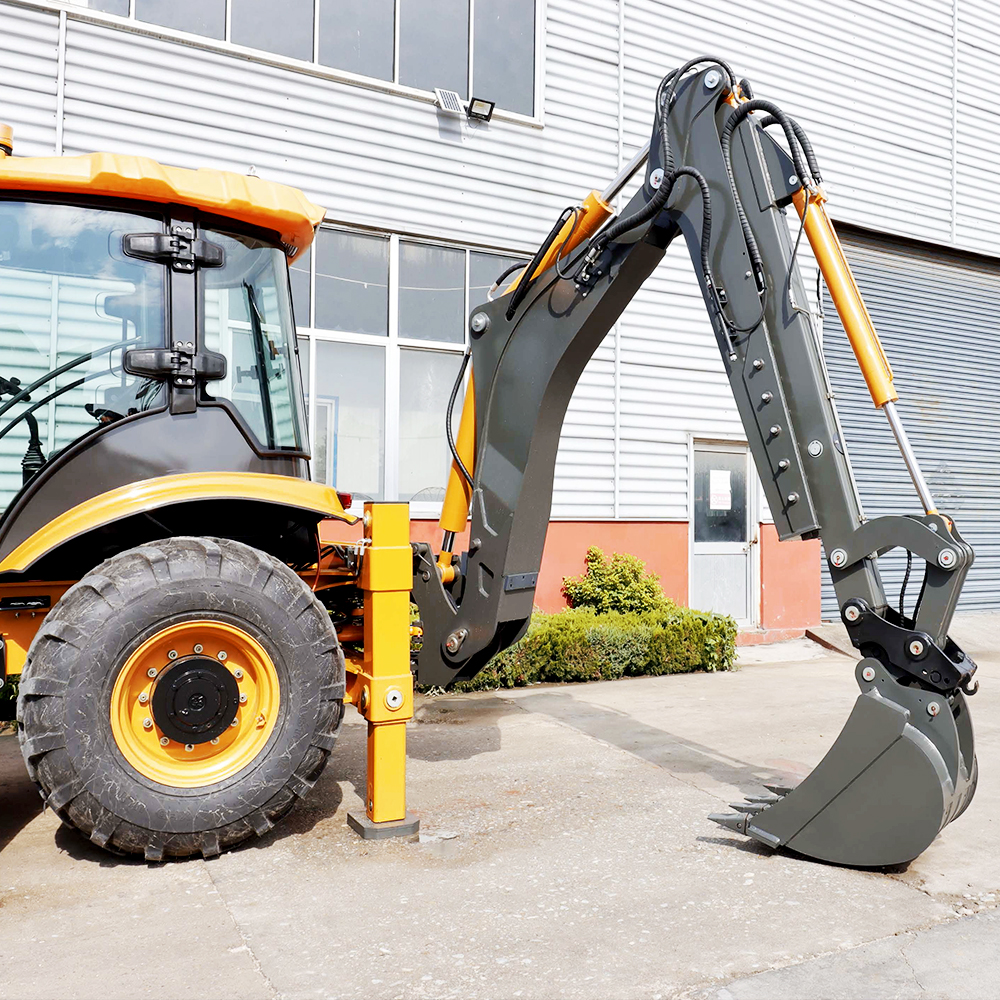

Pictures of Backhoe Loader
