Introduction of WZ30-18 Excavators Backhoe Loaders
1. WZ30-18 Excavators Backhoe Loaders has enlarged driver's cab, safety glass. Luxurious shock absorber seat.1, Increased cab with security glass, bright and spacious.2, Operation table: easy to check water temperature, oil temperature, current,
3, WZ30-18 Excavators Backhoe Loaders adopts famous brand hydraulic part, dual pump converging power; excavating, loading hydraulic power for each other.
4, WZ30-18 Excavators Backhoe Loaders adopts suspension shock absorber-360 rotate seat, with seat belts, and improve driver comfort and safety.
5, Hinge type front and rear frames, small turning radius, full hydraulic steering, easy and convenient operation.
Part 6, mining-led operation, light manipulation, positioning accuracy.
7, Fully equipped with all the features of small excavators and loaders.
8, Equipped with a variety of options to meet the needs of different users.
9, Reset the tap unit and the wings legs, broken rock, and when you dig deeper than other forms of mining equipment with greater stability.
6. WZ30-18 Excavators Backhoe Loader equipped with multinational pipeline which can work with a variety of options to meet needs of different users
Parameter of WZ30-18 Excavators Backhoe Loaders
|
Operating weight |
4800kg |
|
Capacity of bucket |
0.3m3 |
|
System working pressure |
20mpa |
|
Engine |
4102 |
|
Rated power |
51kw |
|
Rated speed |
2400r/min |
|
Max. excavating height |
5000mm |
|
Max. excavating depth |
3600mm |
|
Max. excavating radius |
5000mm |
|
Max. excavating Width Max. excavating width |
550mm |
|
Capacity of bucket |
1.0 m3 |
|
Rated load |
1800kg |
|
Dumping height |
3600mm |
|
Dumping reach |
950mm |
|
Min. turning radius |
4300mm |
|
Max. flux |
50ml/r |
|
Max. Tractive force |
38KN |
|
Max. breakout force |
49KN |
|
Max. digging force |
44KN |
|
Grade ability |
45% |
|
Max. traveling speed(forward, backward) |
≤25km/h, 25km/h |
|
Ground clearance |
220mm |
|
Wheel base |
2290mm |
|
Tread |
1500mm |
|
Drive type |
4WD |
|
Tyra |
20.5/70-16 |
|
Size(L*W*H) |
6900mm*2080mm*2900mm |

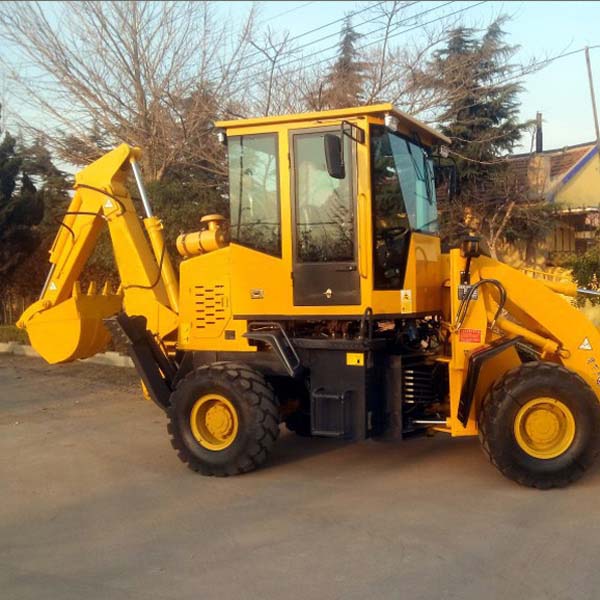

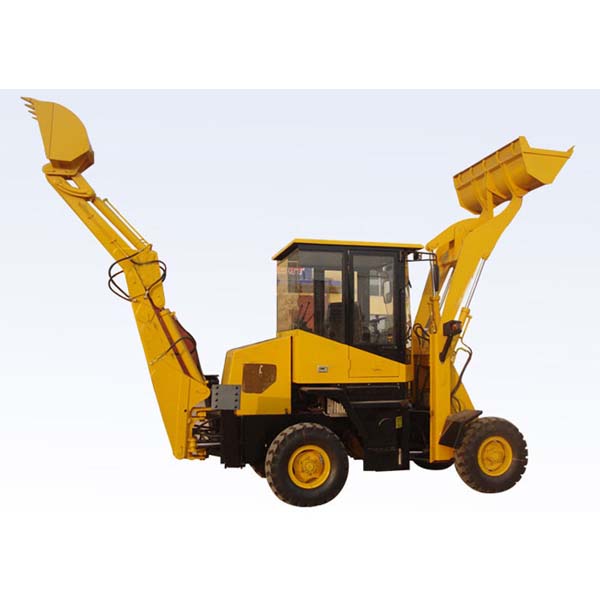

Pictures of WZ30-18 Excavators Backhoe Loaders
