Introduction of Backhoe Loader With 0.4M3 Rated Bucket Capacity
Backhoe Loader With 0.4 M3 Rated Bucket Capacity is of compact structure and logical layout.
Good appearance and design of components embody homogenization adequately.
Backhoe Loader With 0.4 M3 Rated Bucket Capacity has achieved advanced performance level in China.
1.The imported components is used as the transmission system and the hydraulic system uses domestic famous brand.
2.The panoramic cabin is of broad vision.
3.The driving axle with differential lock and wet disc brake significantly improve the traction and safety performance.
4.The service brake and parking brake adopts maintainable-free.
The cover with open-back design improves maintainability.
5.Backhoe Loader With 0.4 M3 Rated Bucket Capacity 0.4 M3 Rated can be fixed with many accessories according to requirements.
Parameter of Backhoe Loader With 0.4M3 Rated Bucket Capacity
|
Operating weight |
6500kg |
|
Capacity of bucket |
0.4m3 |
|
System working pressure |
20mpa |
|
Engine |
4102 |
|
Rated power |
60kw |
|
Rated speed |
2200r/min |
|
Max. excavating height |
6000mm |
|
Max. excavating depth |
3200mm |
|
Max. excavating radius |
5550mm |
|
Max. excavating WidthMax. excavating width |
720mm |
|
Capacity of bucket |
0.9m3 |
|
Rated load |
1600kg |
|
Dumping height |
2850mm |
|
Dumping reach |
1000mm |
|
Lifting time of movable arm |
3.8s |
|
Descending time of movable arm |
3.4s |
|
Dumping time |
3s |
|
Max. flux |
63ml/r |
|
Max. Tractive force |
30kn |
|
Grade ability |
35° |
|
Ground clearance |
220mm |
|
Wheel base |
2800mm |
|
Tread |
1550mm |
|
Drive type |
4WD |
|
Tyre |
825-16 |
|
Size(L*W*H) |
7500mm*2100mm*2700mm |

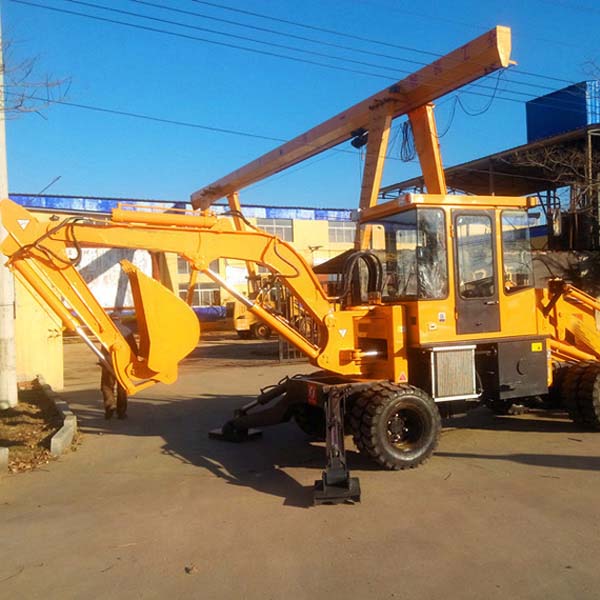

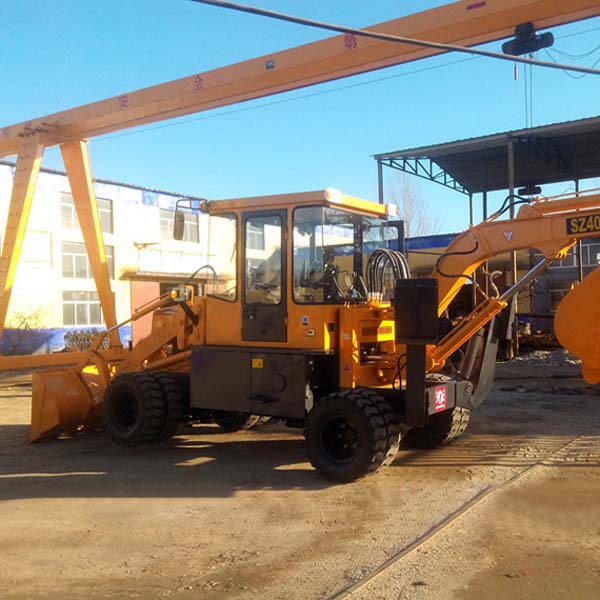

Pictures of Backhoe Loader With 0.4M3 Rated Bucket Capacity
