Introduction of Coal Mine Belt Type Feeding Machine
Coal Mine Belt Type Feeding Machine using the dump hopper structure, feeding more thoroughly, and reducing the equipment occupied space at the same time.
Using the lift running device, which can reduce the machine height effectively at work.
The feeding capacity can be up to 12 m³/h, and the feeding is more uniform and continuous.
Coal Mine Belt Type Feeding Machine can save the quantity of the worker and reduce the labor intensity, improving the operation safety.
Parameter of Coal Mine Belt Type Feeding Machine
|
NO |
ITEM |
UNIT |
PARAMETER |
|
1 |
Transmission capacity |
m³/h |
15 |
|
2 |
Discharge height（scope） |
mm |
2000～2400（about ±20） |
|
3 |
Towing speed |
km/h |
≥2 |
|
4 |
Dimensions |
mm |
8900×1470×2050（about ±20） |
|
5 |
Weight |
kg |
3500 |
|
6 |
The working pressure of the cylinder |
MPa |
23 |
|
7 |
Rated storage |
m³ |
6 |
|
8 |
Power |
kW |
11 |
|
9 |
Rating pressure |
MPa |
23 |
|
10 |
rated flow |
L/min |
63 |

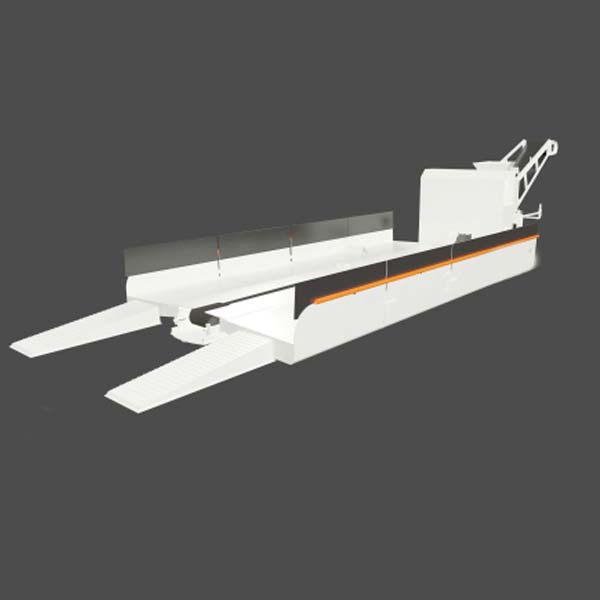

Pictures of Coal Mine Belt Type Feeding Machine
