Fully Self-Propelled Curved Arm Lifting Platform
A mobile aerial work platform featuring a self-propelled chassis and an articulated, curved boom. This design enables it to reach over and around obstacles, providing superior access and positioning f
Product Recommendation
- Product Introduction
- Product Parameter
- Product Picture
- Product Comment
Introduction of Fully Self-Propelled Curved Arm Lifting Platform
It is a highly mobile and versatile aerial work platform (often called a knuckle boom lift or articulating boom lift) that features a fully self-propelled chassis for easy maneuverability and a multi-jointed, curved boom arm. This design allows it to articulate and reach up, over, and around obstacles, providing precise positioning for personnel and tools in complex or confined workspaces.Parameter of Fully Self-Propelled Curved Arm Lifting Platform
| Overall dimensions | ZMQBPT10C/D | ZMQBPT12C/D | ZMQBPT14C/D | ZMQBPT16C/D | ZMQBPT18C/D | ZMQBPT20C/D | ZMQBPT22C/D |
| Overall length (folded) | 5.2m | 5.2m | 6.3m | 7.0m | 7.18m | 8.35m | 8.86m |
| Overall length (folded) | 1.65m | 1.65m | 1.78m | 1.93m | 2.18m | 2.2m | 2.25m |
| Overall height (folded) | 2.35m | 2.35m | 2.35m | 2.35m | 2.2m | 2.53m | 2.53m |
| Table size | 1.6*0.8m | 1.6*0.8m | 1.6*0.8m | 1.6*0.8m | 1.8*0.8m | 1.8*0.8m | 1.8*0.8m |
| Number of working arms | 5 sections | 5 sections | 5 sections | 5 sections | 5 sections | 5 sections | 5 sections |
|
Travelling speed (folded) |
4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
| Lifting Travelling speed （Unfolded） | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Mechanical arm swing | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
| forearm luffing angle | 130° | 130° | 130° | 130° | 130° | 130° | 130° |
| Min.turning radius | Outer wheel 4.4m Inner wheel 2.25m | Outer wheel 4.6m Inner wheel 2.35m | Outer wheel 4.55m Inner wheel 1.85m | Outer wheel 5.2m Inner wheel 2.2m | |||
| Height of the worktable from the floor (folded) | 620mm | 620mm | 300mm | 200mm | 90mm | -100mm | -200mm |
| wheelbases | 1907mm | 1907mm | 2017mm | 2017mm | 2100mm | 2540mm | 2540mm |
| track width | 1440mm | 1440mm | 1550mm | 1550mm | 1800mm | 1830mm | 1830mm |
| weight | 4900kg | 4900kg | 6596kg | 6900kg | 8550kg | 9200kg | 11000kg |
| Main Performance Parameter | |||||||
| Max. working height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Max. platform height | 8m | 8m | 12m | 14m | 16m | 18m | 20m |
| Max. operating radius | 5.3m | 5.3m | 6.9m | 8m | 8.9m | 10.6m | 11.7m |
| Max. spanning height | 5.1m | 5.1m | 6.6m | 7.6m | 8.25m | 8.55m | 9.45m |
| Max. Climbing | 25° | 25° | 25° | 25° | 25° | 25° | 25° |
| worktable load | 230kg | 230kg | 230kg | 230kg | 230kg | 230kg | 230kg |
| Max. number persons carried | Two people | Two people | Two people | Two people | Two people | Two people | Two people |
| worktable rtation angle (optional) | ±80° (overall length will increase 200mm ) | ||||||
| Drive parameters - diesel | |||||||
| Rotary angle of rotary table | 360° continuous | ||||||
| Type of power | diesel | ||||||
| Max. output power | 37kw | ||||||
| Engine type | Kubota、Bailitong、Cummins、Chinese Engine | ||||||
| Emission standards | ChinaⅡ/EPA/Euro V | ||||||
| Drive parameters - electric | |||||||
| Rotary angle of rotary table | 355°discontinuous | ||||||
| Type of power | rechargeable battery | ||||||
| Travel drive | 5.5kw | 5.5kw | 6.3kw | 6.3kw | 6.5 | 7.5kw | 7.5kw |
| Lifting drive | 4kw | 4kw | 4kw | 4kw | 5.5kw | 5.5kw | 5.5kw |
| Battery Voltage | 2v | 2v | 2v | 2v | 2v | 2v | 2v |
| battery capacity | 250ah | 250ah | 250ah | 250ah | 330ah | 330ah | 400ah |
| Battery Charger | 48v35A | 48v35A | 48v35A | 48v/40A | 48v/40A | 48v/45A | 48v/45A |
| Number of batteries | 24 pieces | 24 pieces | 24 pieces | 24 pieces | 24 pieces | 24 pieces | 24 pieces |
| Hydraulic oil tank volume | 60L | 60L | 60L | 60L | 80L | 80L | 80L |

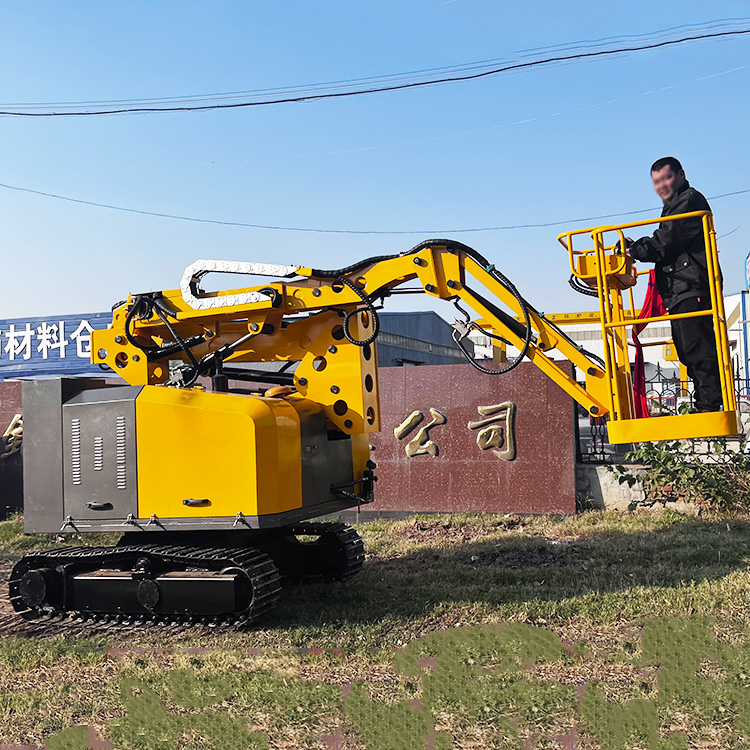

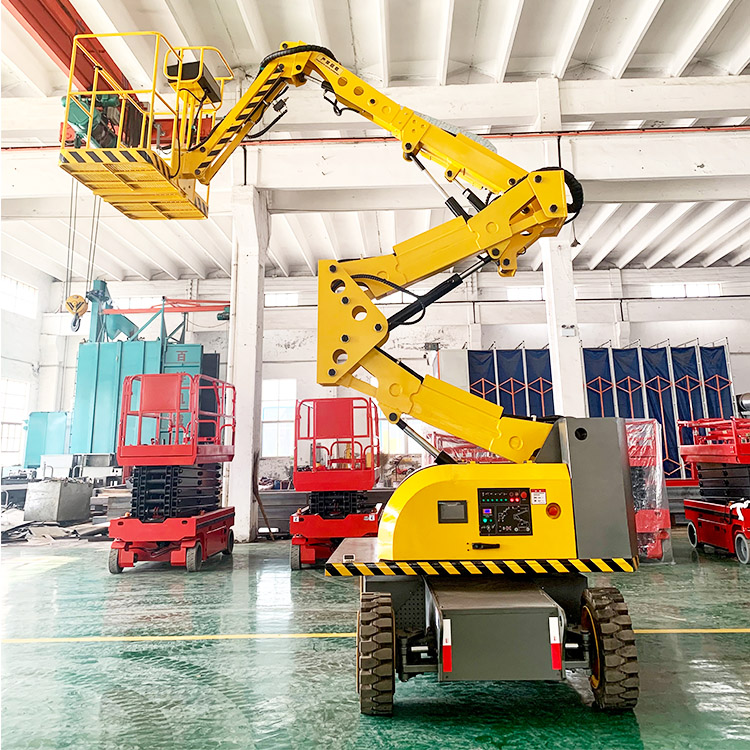

Pictures of Fully Self-Propelled Curved Arm Lifting Platform
